Potencia y precisión
muy compacta.
The Totem PRO is the high-performance version of the Totem range. Designed for clinics and centers that demand maximum speed without compromising precision.
The Totem PRO fits where
precision is essential.
For centers that demand the highest level of biometric analysis. The PRO takes clinical measurement to another level of precision and performance.
Highly specialized medical centers
Clinics requiring the highest level of biometric analysis for advanced medical protocols.
High-performance sports units
Sports medicine and performance centers that need high-precision biometric data to optimize athletic performance.
Corporate environment
Companies with health programs that need periodic measurements for their employees in an agile and non-invasive way.
Professionals who bet on technology
The innovation that sets you apart from the rest.
Cutting-edge client experience
Every interaction with your patient, designed to be remembered.
Teams with a professional present
When a professional guides the patient, the PRO delivers full measurement capability without technological overload.

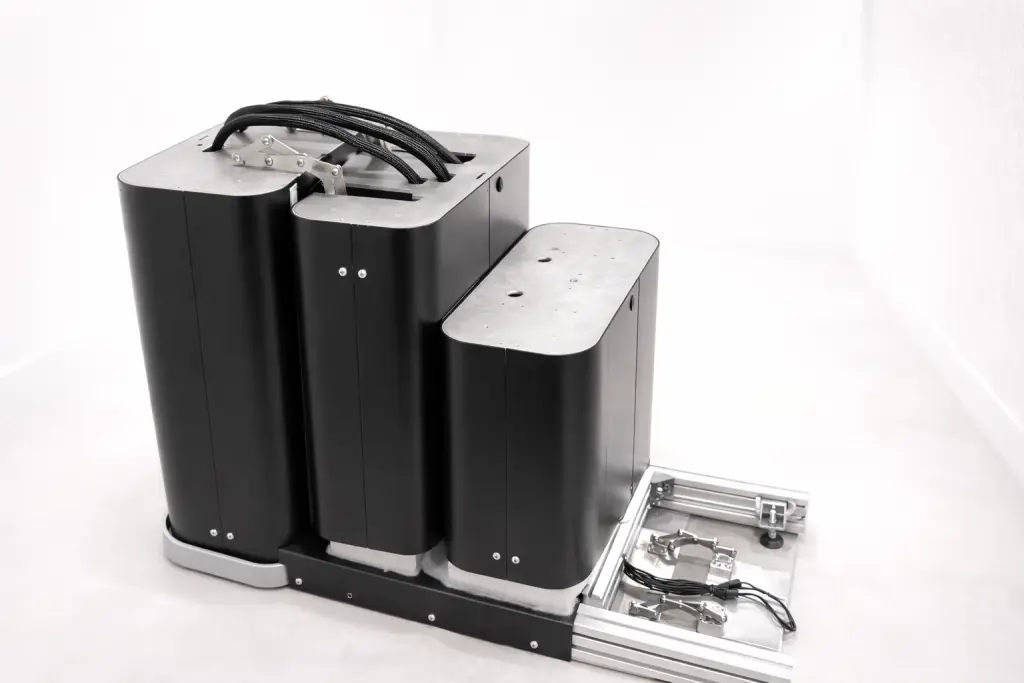

Construido para entrar
en cualquier centro.
Diseño, instalación, experiencia de uso y tecnología exclusiva. Todo en un dispositivo compacto y sin concesiones.
Diseño minimalista y elegante
Un dispositivo que encaja en cualquier entorno clínico sin comprometer la estética.
El Totem iNuba fue diseñado en torno a tres principios: funcionalidad y precisión al servicio de la calidad. Un dispositivo que encaja en cualquier entorno clínico sin comprometer la estética.
Plug & Play
Listo para usar desde el primer momento. Operativo en menos de 15 minutos.
Listo para usar desde el primer momento. Sin instalaciones complejas ni formación técnica extensa. Conecta, configura y empieza a medir en menos de 15 minutos.

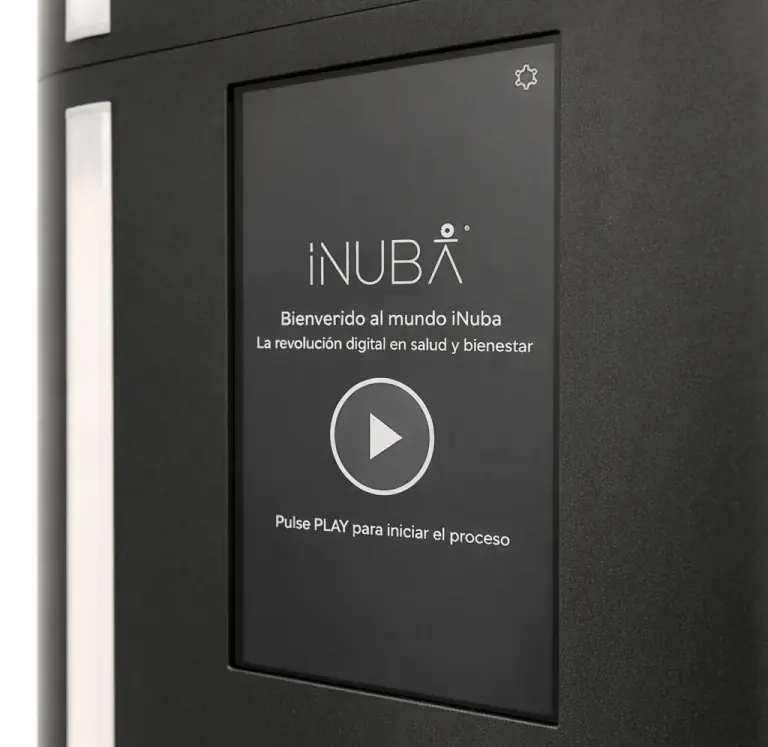

Pantalla táctil 15"
Full HD 1920×1080. Guía interactiva al paciente sin formación previa.
Pantalla de 15" FHD para configurar el dispositivo y guiar a tus pacientes en cada prueba. Diseñada para el entorno clínico: alto brillo, tacto preciso y navegación intuitiva sin formación previa.
Único en sus capacidades
El único totem del mercado con termografía autónoma integrada. Sin equivalente.
Solo iNuba incorpora un sistema termográfico autónomo integrado en un totem de medición. Una tecnología sin equivalente en el mercado que abre nuevas dimensiones diagnósticas en cada escáner.
Three measurement systems,
one single experience.
The Totem PRO combines advanced clinical technologies with maximum precision and performance, without sacrificing measurement speed.
3D Body Scan
Three-dimensional body model at up to 4K UHD resolution. Captures measurements and volumes that no tape measure can provide.
- Realistic 3D avatar up to 4K UHD (3840×2160) · configurable 2K or 4K
- Millimetric precision in every measurement
- Automated futuristic experience
- Full body parameterization
- Perimeters, segments, areas, volumes, asymmetries...
- >200 parameters measured directly
Segmental BIA
Segmental body composition analysis: muscle mass, fat, intra- and extracellular water across 7 configurable measurement frequencies.
Delivers more data than the competition's premium equivalent, including key body composition values: reactance, phase angle, and resistance.
With iNuba's pioneering proprietary technology "3D-Mapping", which increases reliability and precision by combining the 3D avatar and volumetry with bioimpedance.
Performs 35 bioelectrical impedance measurements (Z) using 7 configurable frequencies across the 5 body segments: Right Arm, Left Arm, Trunk, Right Leg and Left Leg.
- 8 electrodes on hands and feet simultaneously
- Muscle mass per body segment
- Visceral, subcutaneous and total fat
- Intracellular and extracellular water
- Phase angle as a cellular health marker
- 7 configurable frequencies (8–1000 kHz)

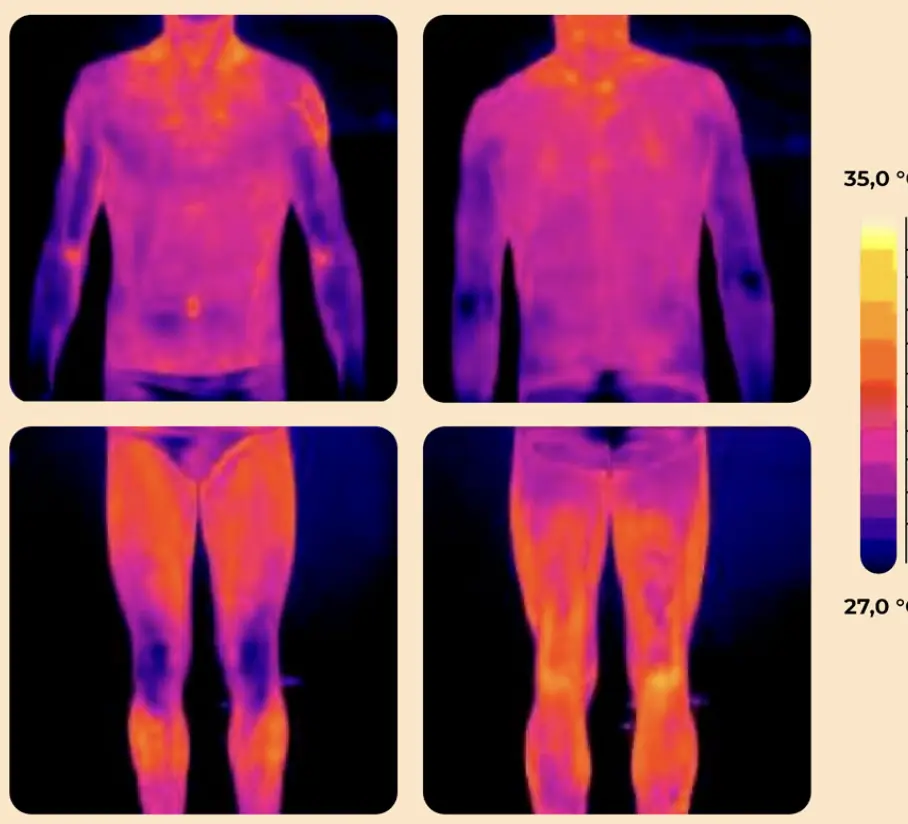

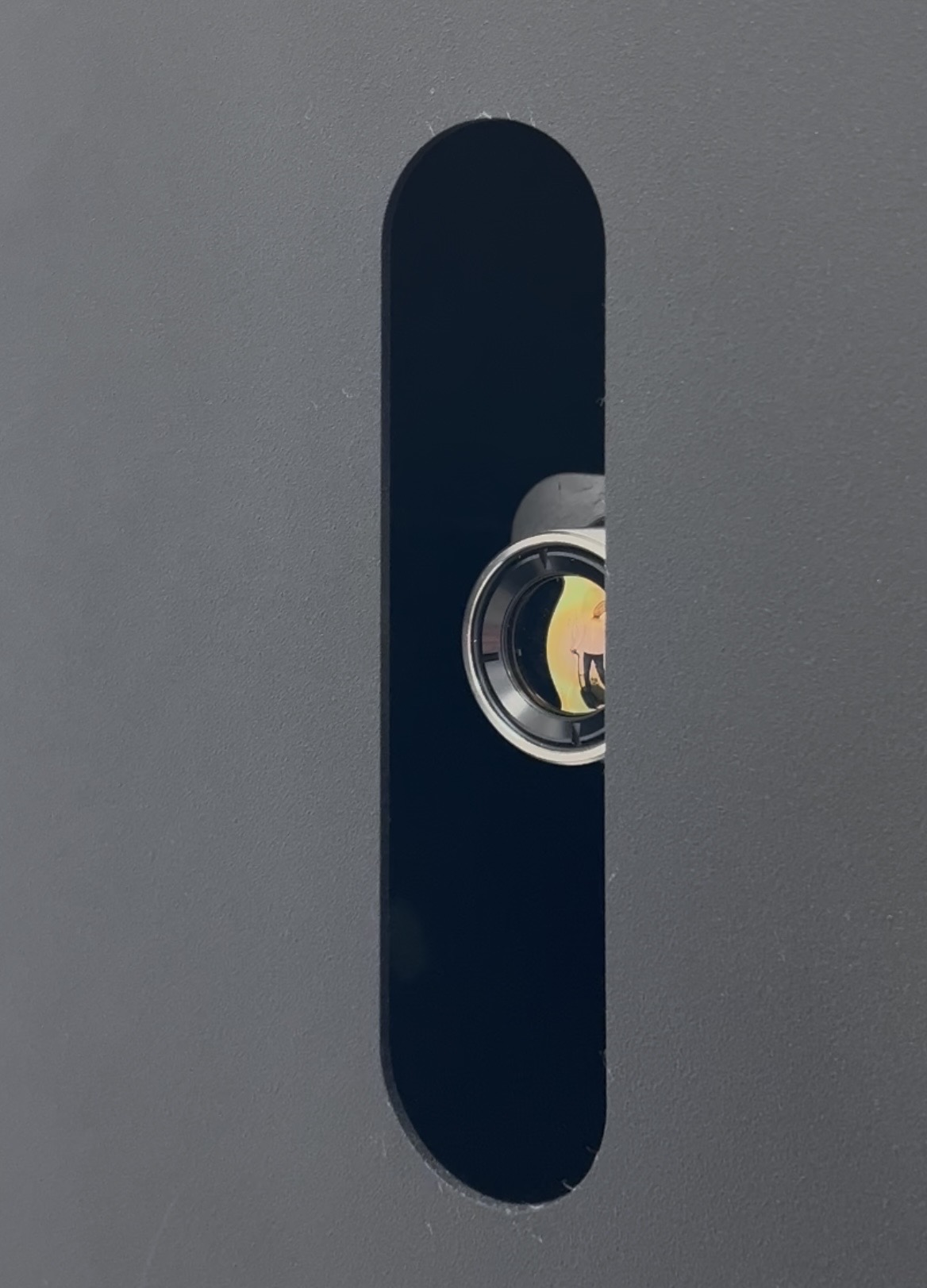

Infrared thermography
Integrated thermal camera that detects skin temperature asymmetries and inflammation areas, useful for clinical monitoring and prevention.
- Full-body thermogram (680×480 pixels)
- Automatic body segmentation
- 133 ROIs (Regions of interest)
- 399 parameters measured directly (Max, Avg and Min Temp per ROI)

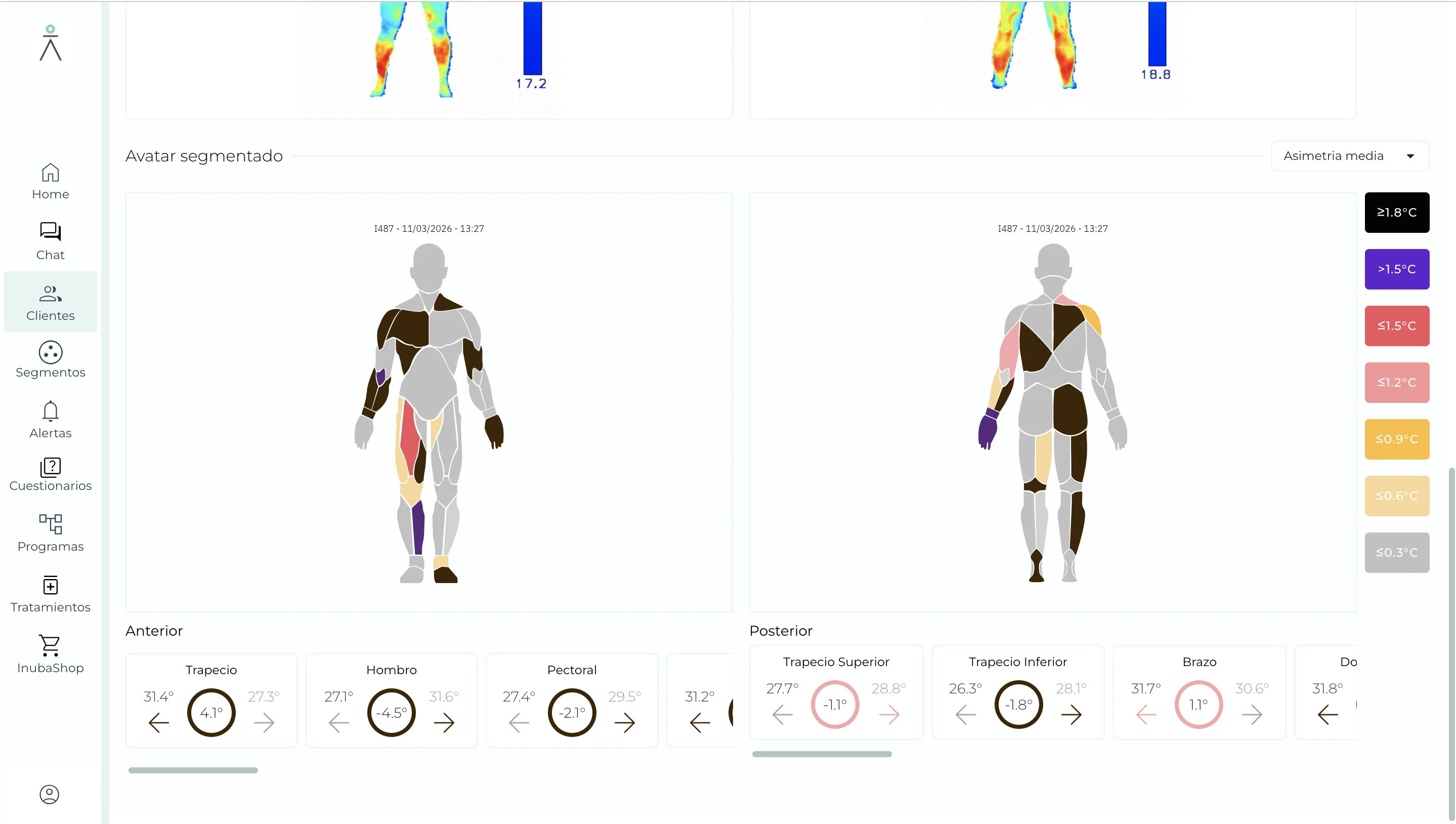

- Advanced per-test analysis and history in iNuba Clinic
- Filtering and treatment in injury-affected areas
- Automated alerts to facilitate analysis and monitoring
The PRO is not an isolated device.
It is part of your system.
Every measurement from the Totem PRO travels automatically to iNuba Clinic. No file exports, no double data entry, no information lost along the way.
The patient steps onto the Totem PRO
The process takes 90 seconds. No additional clothing, no special preparation, no technical professional present.
The system captures all three technologies
3D body scan, bioimpedance and thermography simultaneously and in a standardized way.
Data syncs with iNuba Clinic
Automatically. The professional sees the results in their dashboard with no additional action required.
The patient receives their report on their phone
Results compared with the previous measurement, trend analysis, and recommendations from the professional.

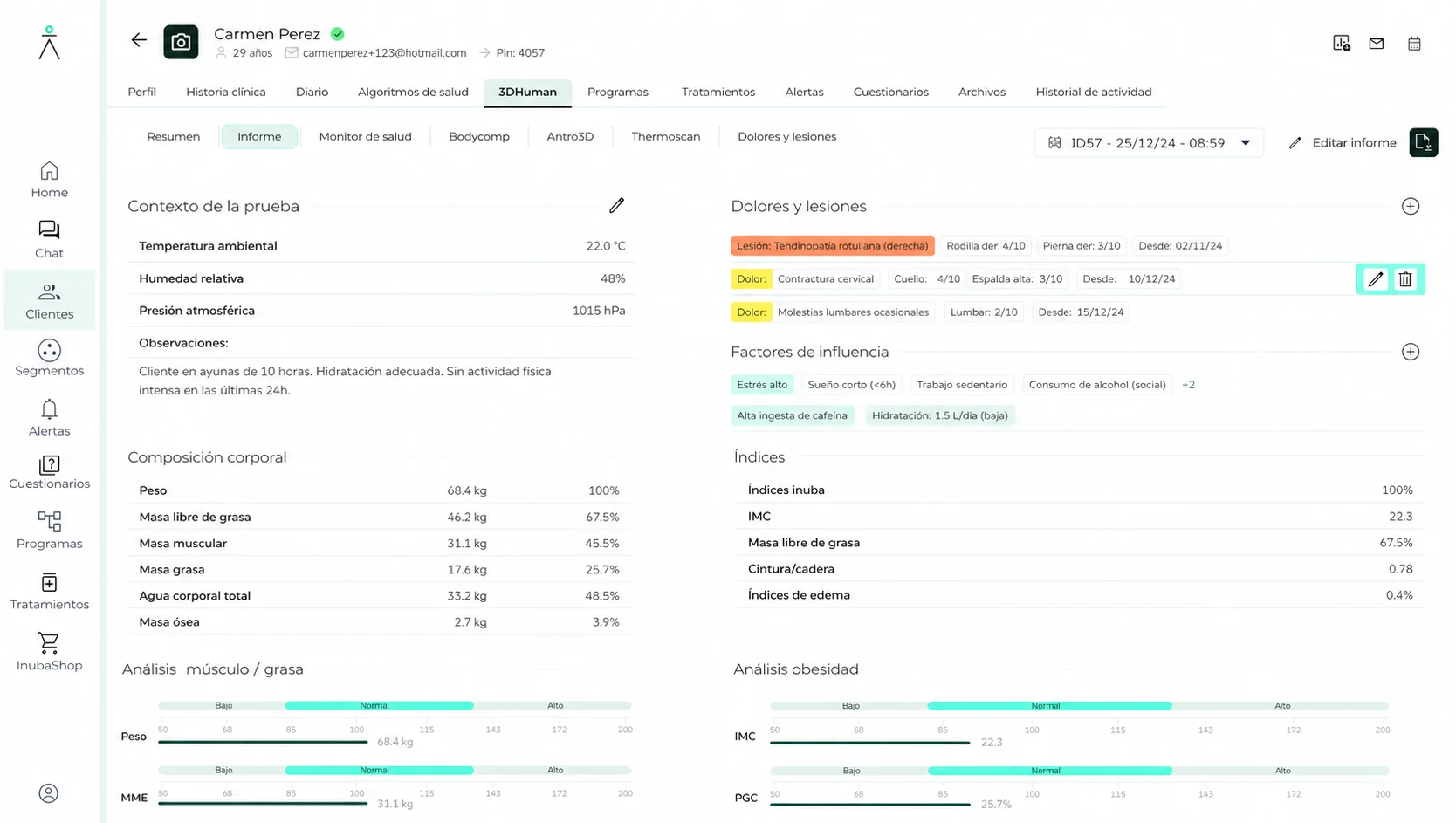

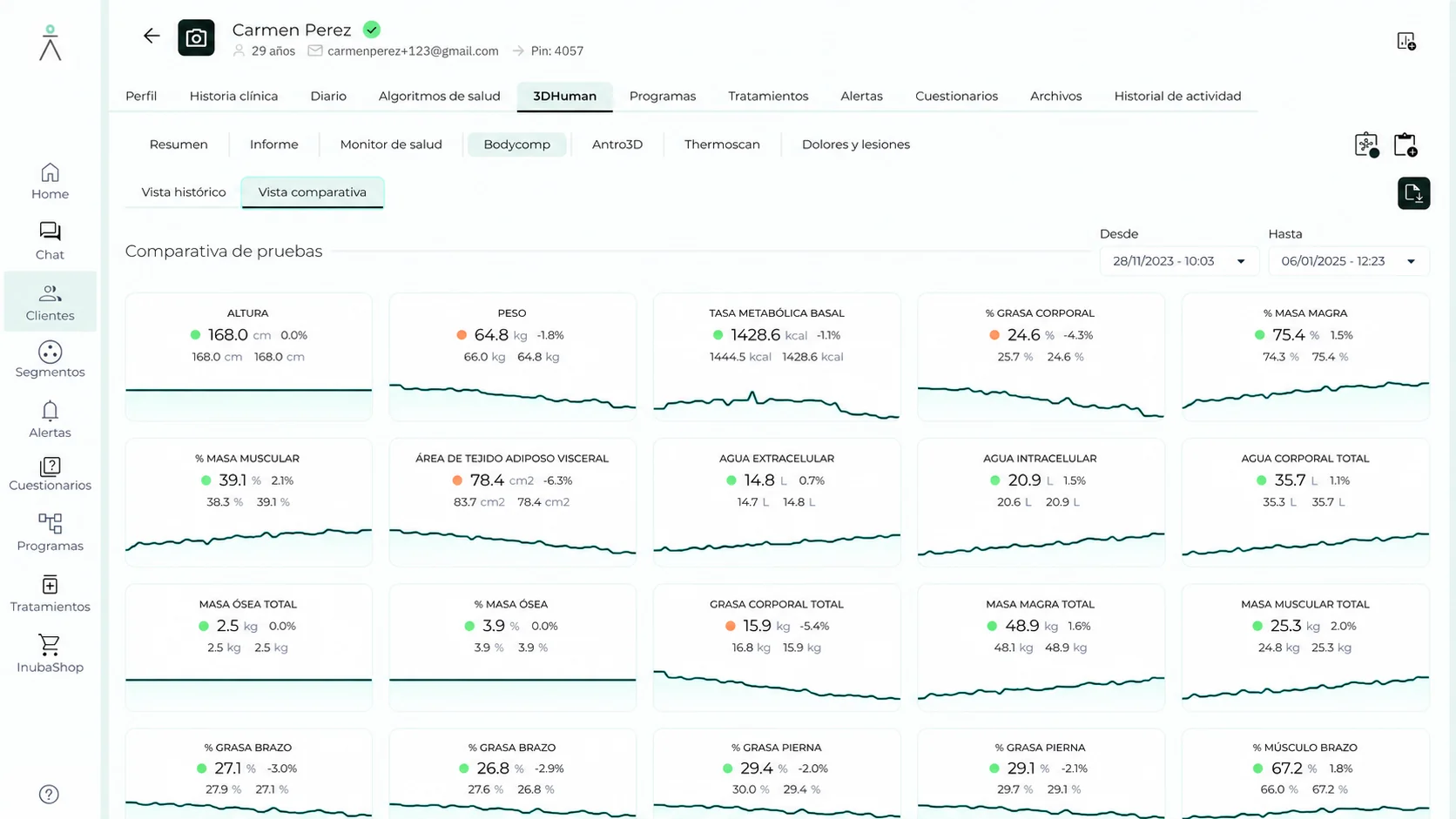

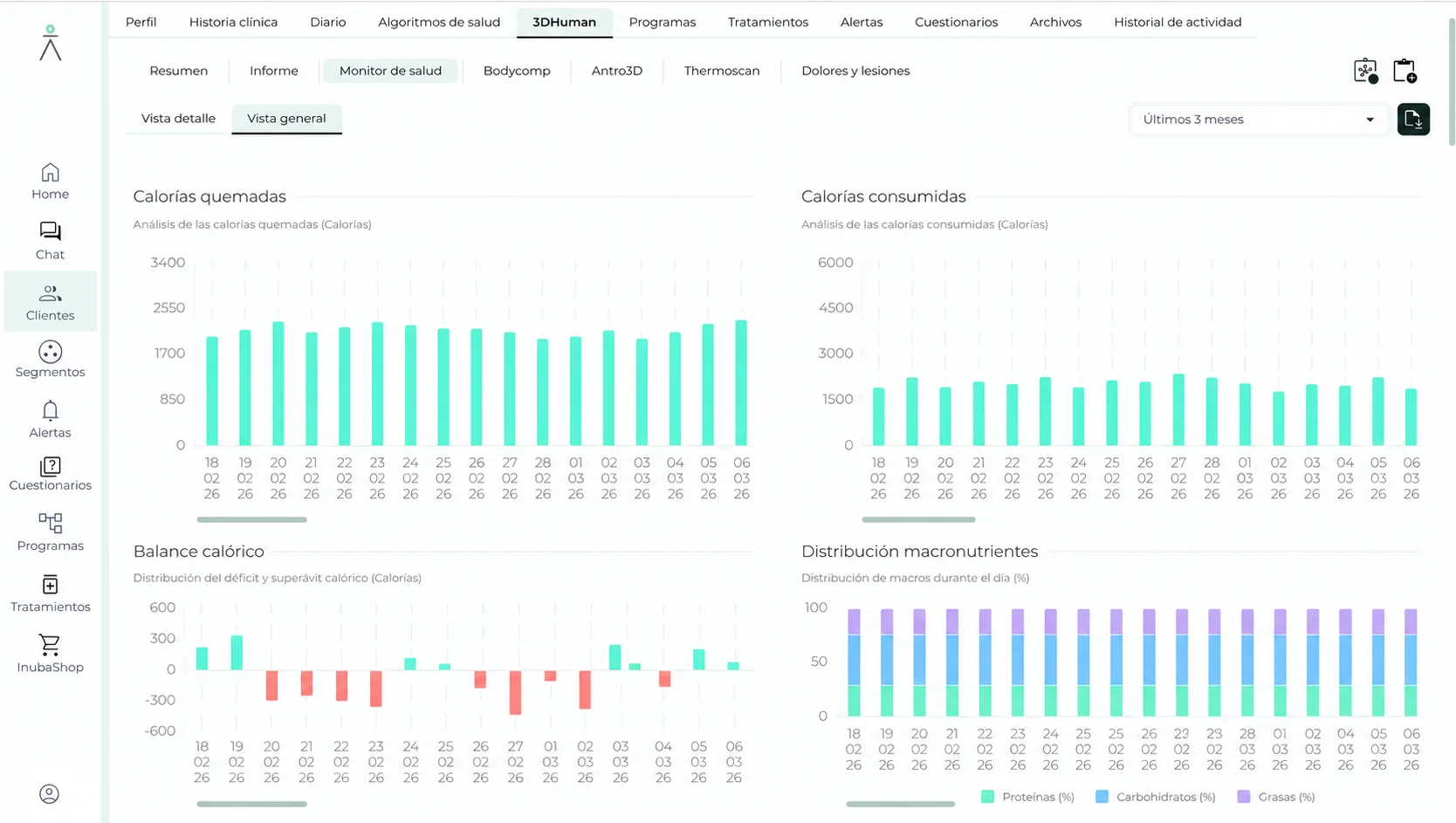

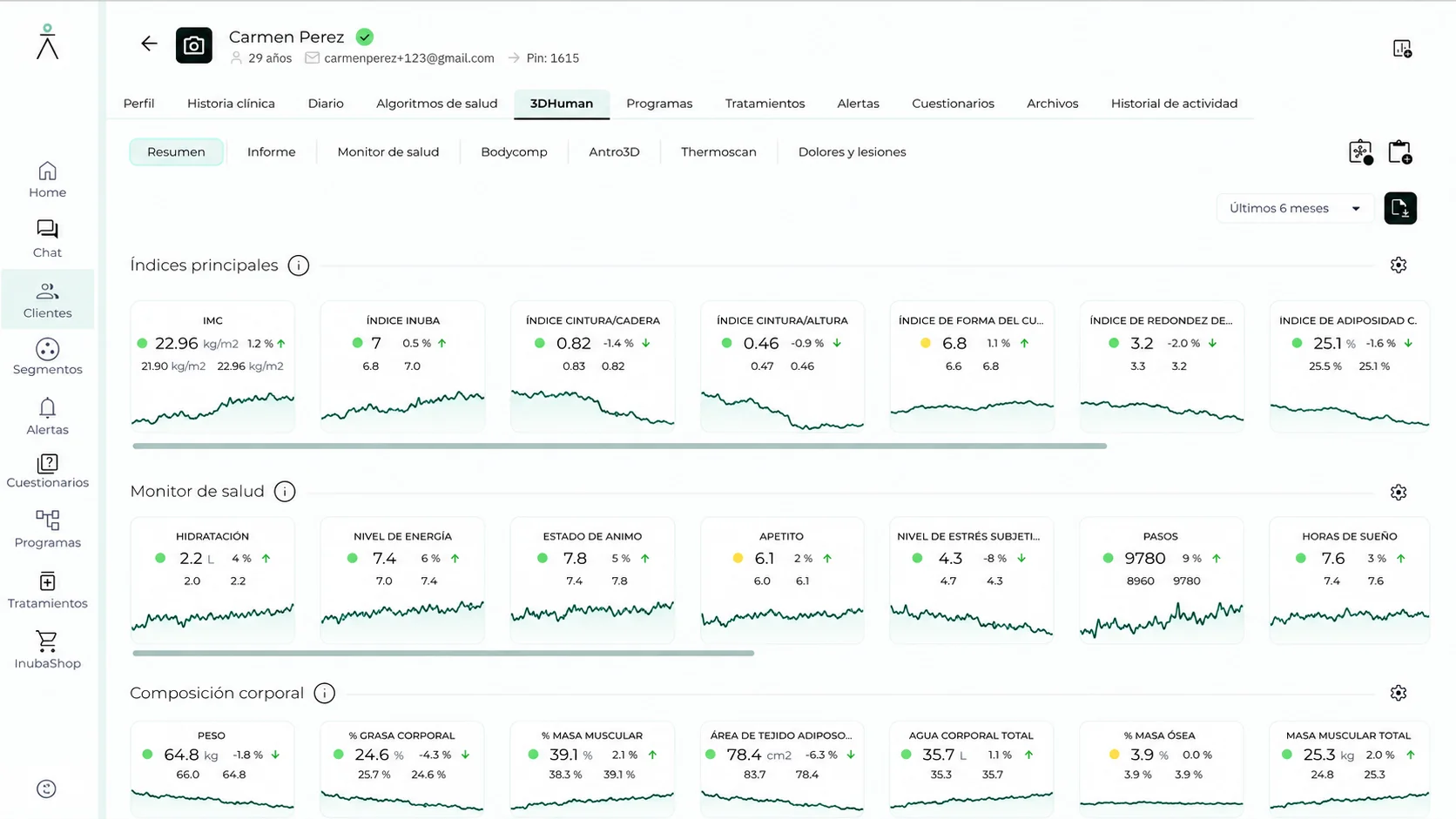

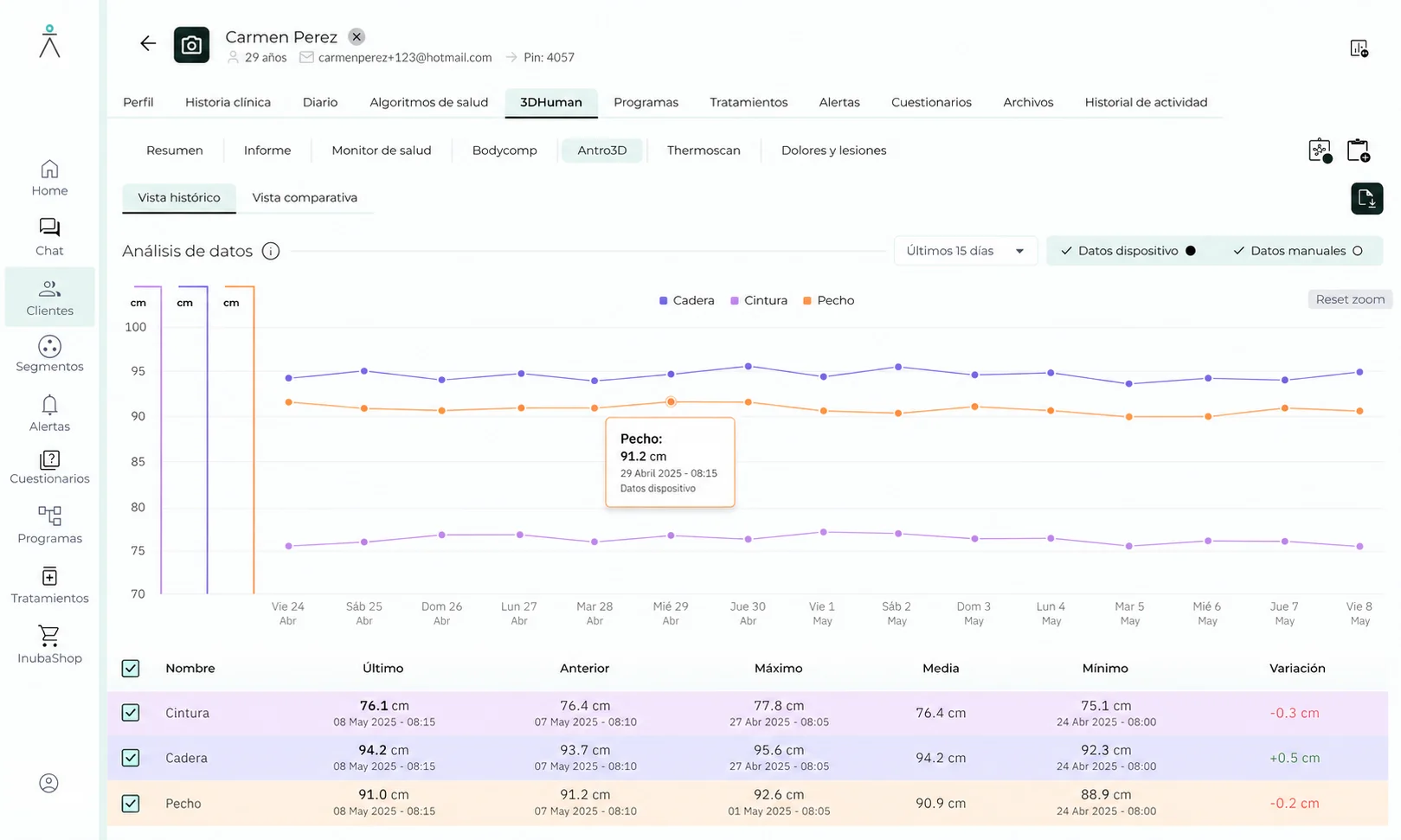

How the professional views patient data
Every measurement from the Totem PRO arrives instantly in the clinical panel. Six specialized views to deeply understand your patient's health status.
NEO, PRO or BOX?
Choose based on your workflow.
If your center has a high volume of measurements, needs higher thermography resolution or advanced body composition analysis, PRO or BOX may be your option.
|
|
 |
|
|---|---|---|---|
| iNuba Totem NEO | iNuba Totem PRO | iNubaBox | |
| Learn more | Request Demo | Learn more | |
| General | |||
| Installed dimensions | W 80cm / H 210cm / L 200cm | W 80cm / H 210cm / L 200cm | W 194cm / H 249cm / L 266cm |
| Weight | 70 kg | 70 kg | 556 kg |
| Connectivity | Dual-band WiFi | Dual-band WiFi | WiFi + 4G/LTE |
| Total scan time | 90 sec | 90 sec | 90 sec |
| Octopolar bioimpedance | |||
| No. of frequencies | 5 | 7 | 7 |
| Configurable frequencies | No | Yes | Yes |
| Measurement duration | 30 sec | 30–50 sec | 30–50 sec |
| Thermography | |||
| Resolution | 382×288 px | 680×480 px | 680×480 px |
| Precision | ±2% | ±1.5% | ±1.5% |
| NETD sensitivity | 50 mK | 40 mK | 40 mK |
| 3D Reconstruction | |||
| Resolution | 2K FHD | 4K UHD | 4K UHD |
| Depth error | <1.5% | <1% | <1% |
| Configurable resolution | Fixed 2K | 2K or 4K | 2K or 4K |
| CUDA cores | 4608 | 6144 | 6144 |
| Computing power (GPU) | 8GB GPU (488 GB/s) | 12GB GPU (672 GB/s) | 12GB GPU (672 GB/s) |
| Reconstruction time | 4:00 (2K) | 2:45 (2K) · 4:10 (4K) | 2:45 (2K) · 4:10 (4K) |
Does the Totem PRO fit
your center?
In 30 minutes we analyze your needs, your space, and your workflow. Our experts will help you choose the right option.
NO COMMITMENT
